STUFE E INCUBATORI LOW-COST
Ovens and Incubators LOW-COST
MPM Instruments

 Home

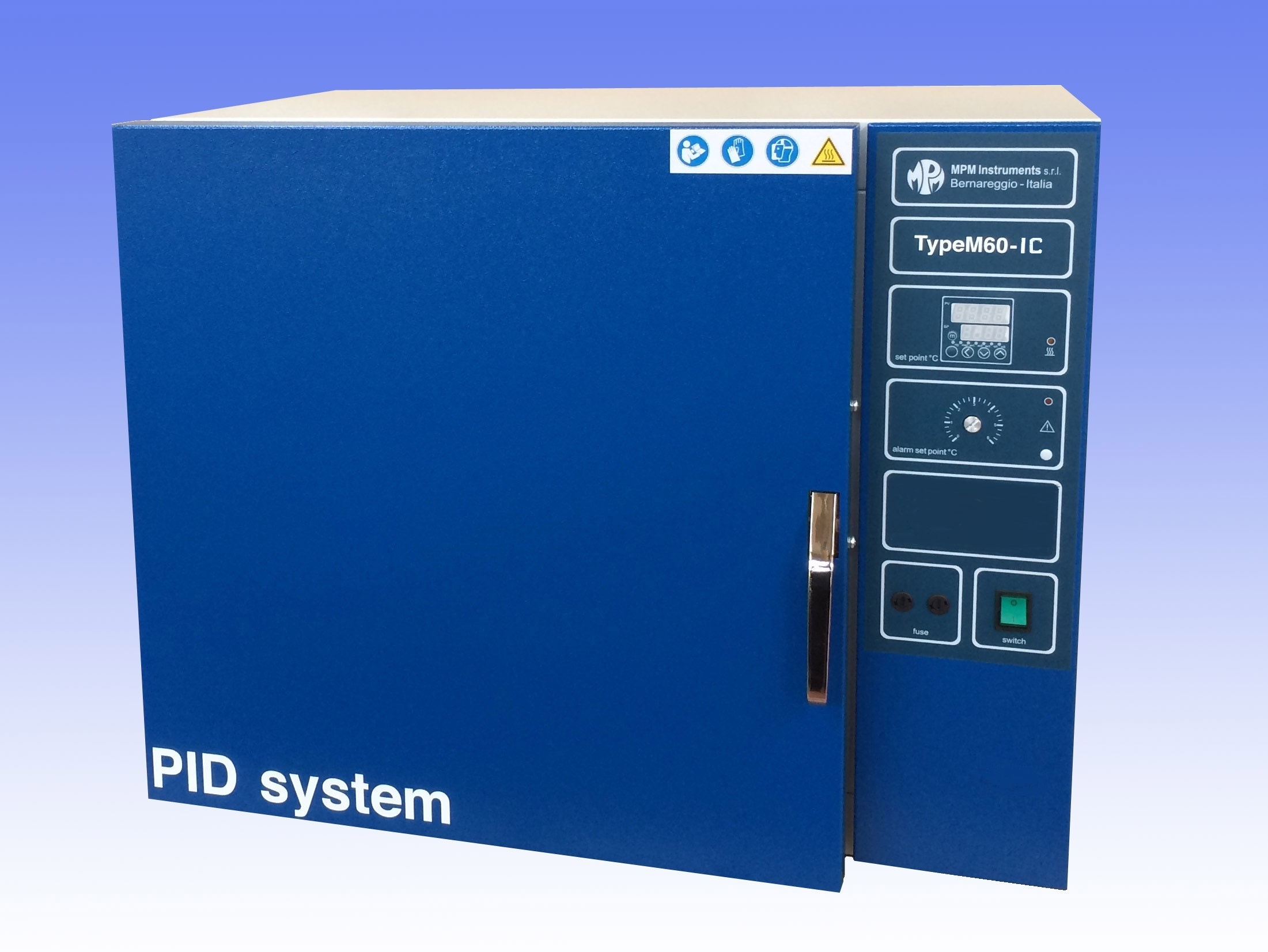

MODELLO /  MODEL
Convenzione Naturale
Natural air convection

COD.

M60-CN 04.6002
M120-CN 04.6004
M250-CN 04.6006
MODELLO /  MODEL
Convenzione Forzata
Forced convection
M60-CF 04.7002
M120-CF 04.7004
M250-CF 04.7006
MODELLO /  MODEL
Convenzione Incubatore
Incubator convection
M60-CI 04.8002
M120-CI 04.8004
M250-CI 04.8006





Caratteristiche tecniche

  • Incubatori e stufe a convezione naturale o forzate, adatte a tutte le applicazioni di termostatazione dove necessita una particolare precisione.
  • Struttura esterna in acciaio trattato con vernice a forno.
  • Isolamento termico con fibra minerale naturale.
  • Struttura interna in acciaio inossidabile con bordi arrotondati.
  • Ripiani interni in acciaio grigliato anti ribaltamento regolabili in altezza e removibili per agevolarne la pulizia.
  • Porta a doppio isolamento dotata di guarnizione in gomma siliconica per garantire un'ottima tenuta.
  • Porta, interna in cristallo per ispezionamento sui mod. CI .
  • Sistema di controllo della temperatura digitale a PID con ampio display, visualizzazione simultanea della temperatura reale, di quella impostata e dei paramenti di funzionamento.
  • Termoregolatore / programmatore digitale a P.I.D. a 16 step.
  • Campo di lavoro da + 5 °C sopra ambiente a + 80 °C  precisione display 0,1 °C (mod. CI).
  • Campo di lavoro da + 5 °C sopra ambiente a + 280 °C  precisione display 1 °C (mod. CF - CN ).
  • Funzione timer con range di programmazione da 0 min a 9999 ore, possibilità di impostare un ritardo al ciclo di termostatazione.
  • Funzione Autotuning per garantire una buona stabilità.
  • Funzione allineamento e calibrazione della temperatura con un termometro campione.
  • Pannello comandi isolato termicamente.
  • Nuovo sistema di riscaldamento in precamera,  progettato per garantire una maggiore uniformità della temperatura e un minor consumo energetico.
  • Per una ulteriore protezione l’apparecchio è dotato di un termostato di sicurezza con allarme visivo classe 3.1, DIN 12880.
  • Foro diam. 5 mm. collocato sul tetto per il passaggio di cavi o sensori esterni.
  • Alimentazione 230V - 50/60Hz

Technical specifications
  • Forced ventilation or natural air convection oven and incubator ideal for all thermostatic applications where a specific precision is needed.
  • External structure in steel coated in paint .
  • Thermal insulation with mineral fiber.
  • Inner structure in stainless steel with rounded corners..
  • Internal shelves in steel grating rollover height adjustable and removable for easy cleaning.
  • Double insulation door with a silicone seal to prevent  head loss..
  • Internal  door in crystal temperateor easy  inspecting for mod. CI.
  • System temperature control with digital PID with large display, simultaneous display of temperature and SET-POINT.
  • Temperature controller / programmer with digital PID 16 step, timer function with a range of programming from 0 min to 9999 hours and the possibility of delayed start thermostat.
  • Working range from + 5 °C above ambient temperature to + 80 °C  display accuracy  0.1°C (mod. CI).
  • Working range from + 5 ° C above ambient temperature to 280 °C  display accuracy  1°C (mod. CF - CN ).
  • Auto-tuning function to ensure good stability.
  • Alignment function and temperature calibratio for standard thermometer.
  • Panel commands insulated thermal.
  • New heating system in the pre-chamber, designed to ensure a more uniform temperature and lower energy consumption.
  • For added protection the unit is equipped with a safety thermostat with visual alarm Class 3.1, DIN 12880.
  • Vent diam. 5 mm placed on the roof for the passage of cables or external sensors.
  • Power supply 230V  -  50/60HZ



MODELLO MODEL M60-CN/CF/CI  M120-CN/CF/CI  M250-CN/CF/CI
DIMENSIONI INTERNE
INTERNAL DIMENSIONS
Volume (nominale) lt.
Volume (nominal) lt.
60 120 250
Larghezza mm.
Width mm.
408 498 593
Profondità mm.
Depth mm.
372 477 522
Altezza mm.
Height mm.
422 512 797
DIMENSIONI ESTERNE
EXTERNAL DIMENSIONS
Larghezza mm.
Width mm.
746 836 956
Profondità mm.
Depth mm.
590 695 775
Altezza mm.
Height mm.
610 720 1025
Controllo della temperatura
Temperature
Dotazione ripiani
Shelves included
2 2 2
Potenza CN W
Power CN W
1000 1600 2500
Potenza CF W
Power CF W
1200 1700 3200
Potenza CI W
Power CI W
500 800 1250
Alimentazione V
Power supply V
230 230 230
Peso kg
Weight kg
40 60 90
Carico massimo inseribile kg
Load max total insertable kg
20 25 35
Carico massimo per ripiano kg
Load max
shelves kg
7 7 7

CN= Stufa a conv. naturale- Natural oven conv.        CF= Stufa a conv. forzata- Forced oven conv.

CI= Incubatore- Incubator
